CDI Box Mercury Outboard (Refer to Fitments) (RMS030-100048)
$355.99 NZD
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
At our Warehouse, Call for in Store Stock levels 09-4865187

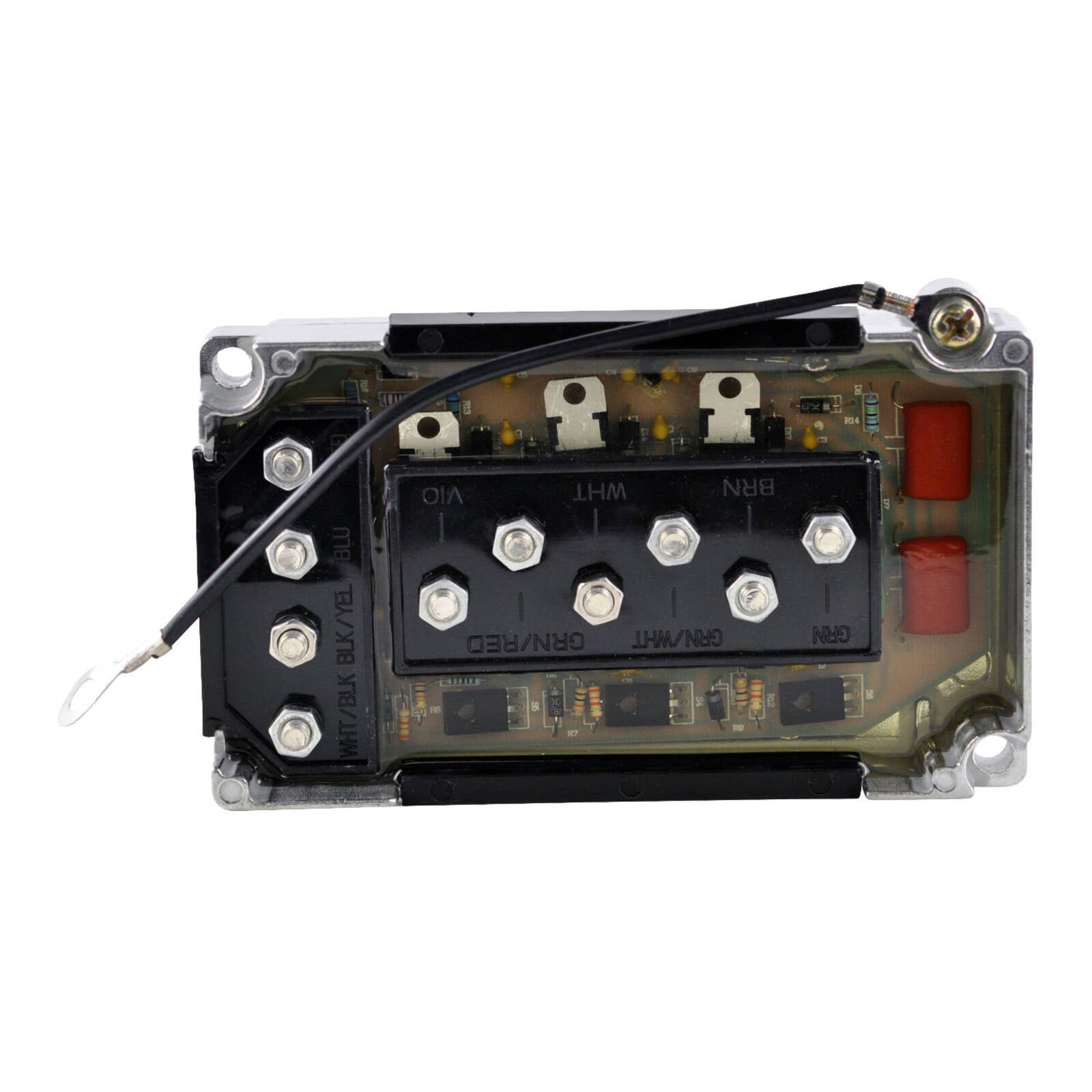

Plug-and-play, aftermarket replacement CDI box for Mercury outboard motors from RM Stator. Refer to fitment guide for models.
Dimensions:
- Width: 79mm
- Length: 136mm
- Height: 26mm
- Fixation holes, centre to centre: 143mm
Installation:

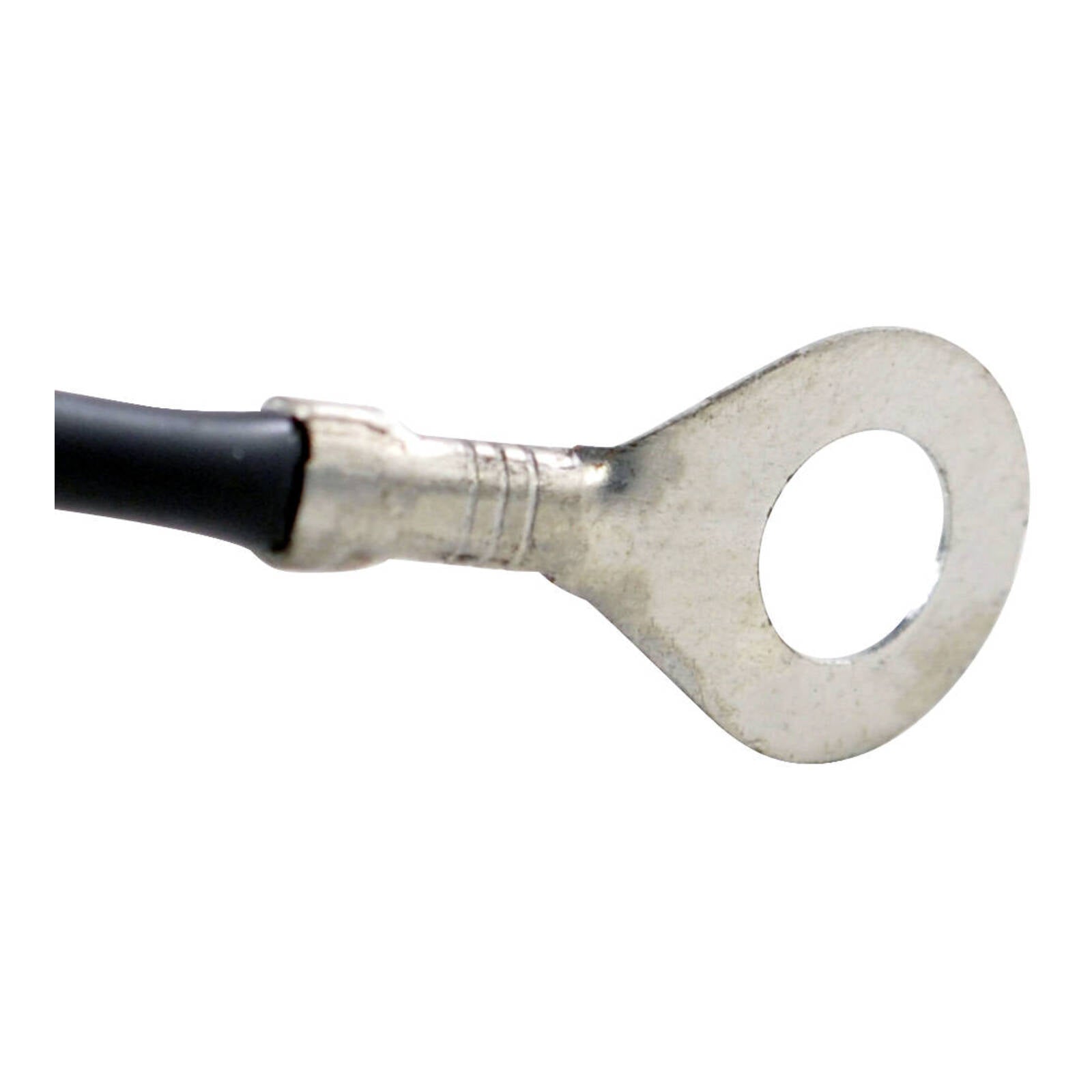

- If the Black Ground Wire is Not Already Connected to the CDI Box, fasten to One of the 4 Mounting Holes on the Outside of the Box
- Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
- If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "Black/Yellow" Stud on the New Box.
