Rectifier Yamaha Outboard (Refer to Fitments) (RM30428)
$304.99 NZD
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
At our Warehouse, Call for in Store Stock levels 09-4865187

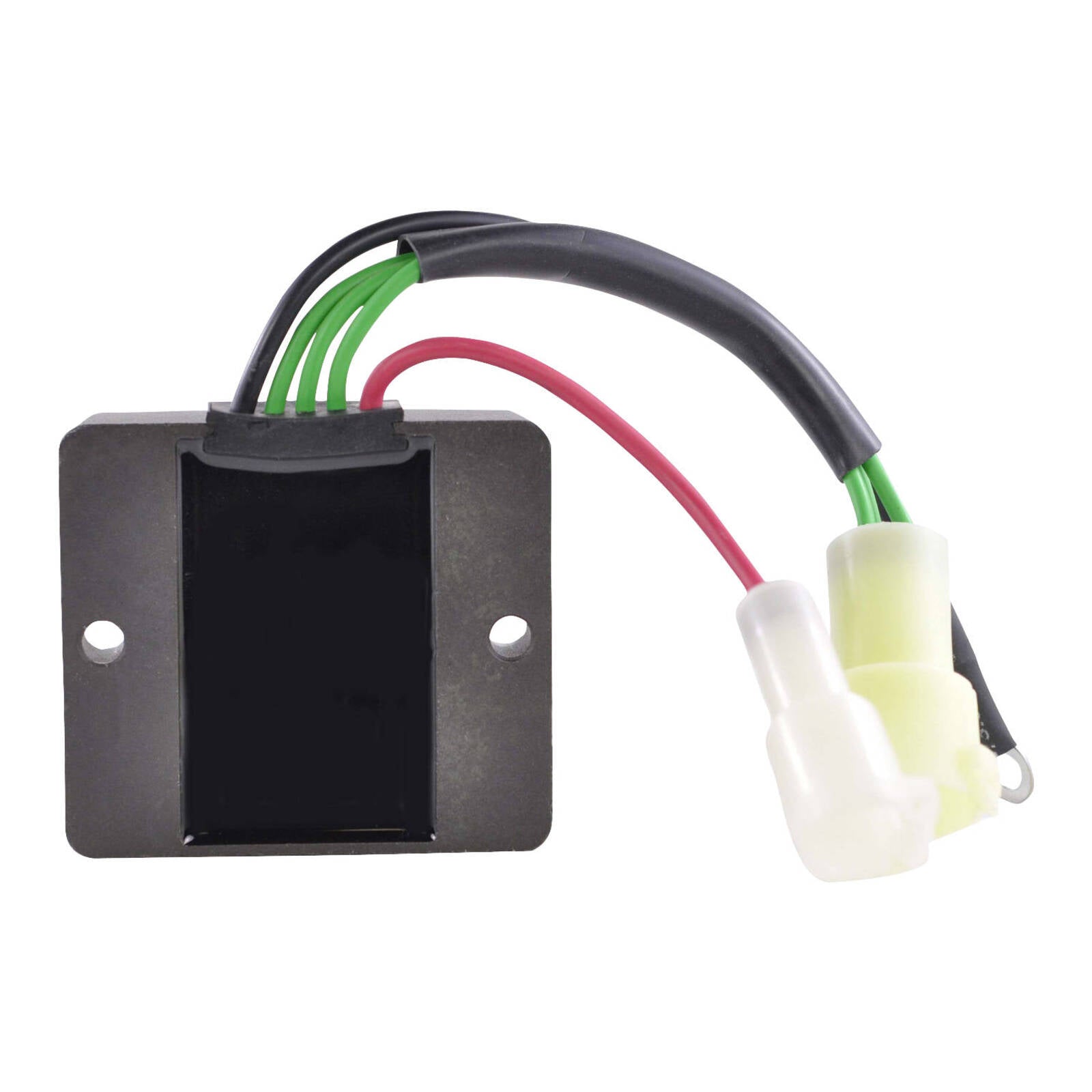

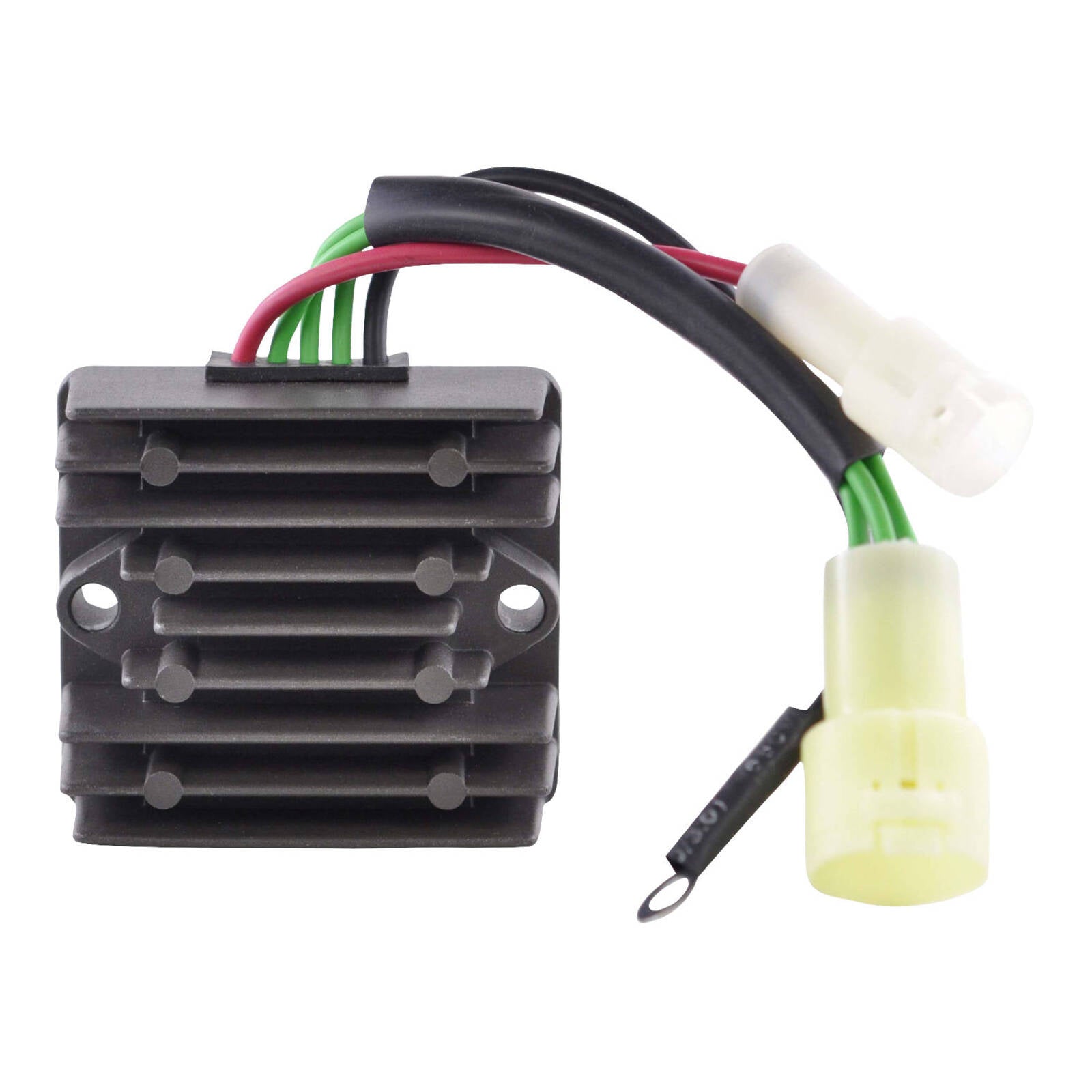

Brand new aftermarket AC/DC voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.

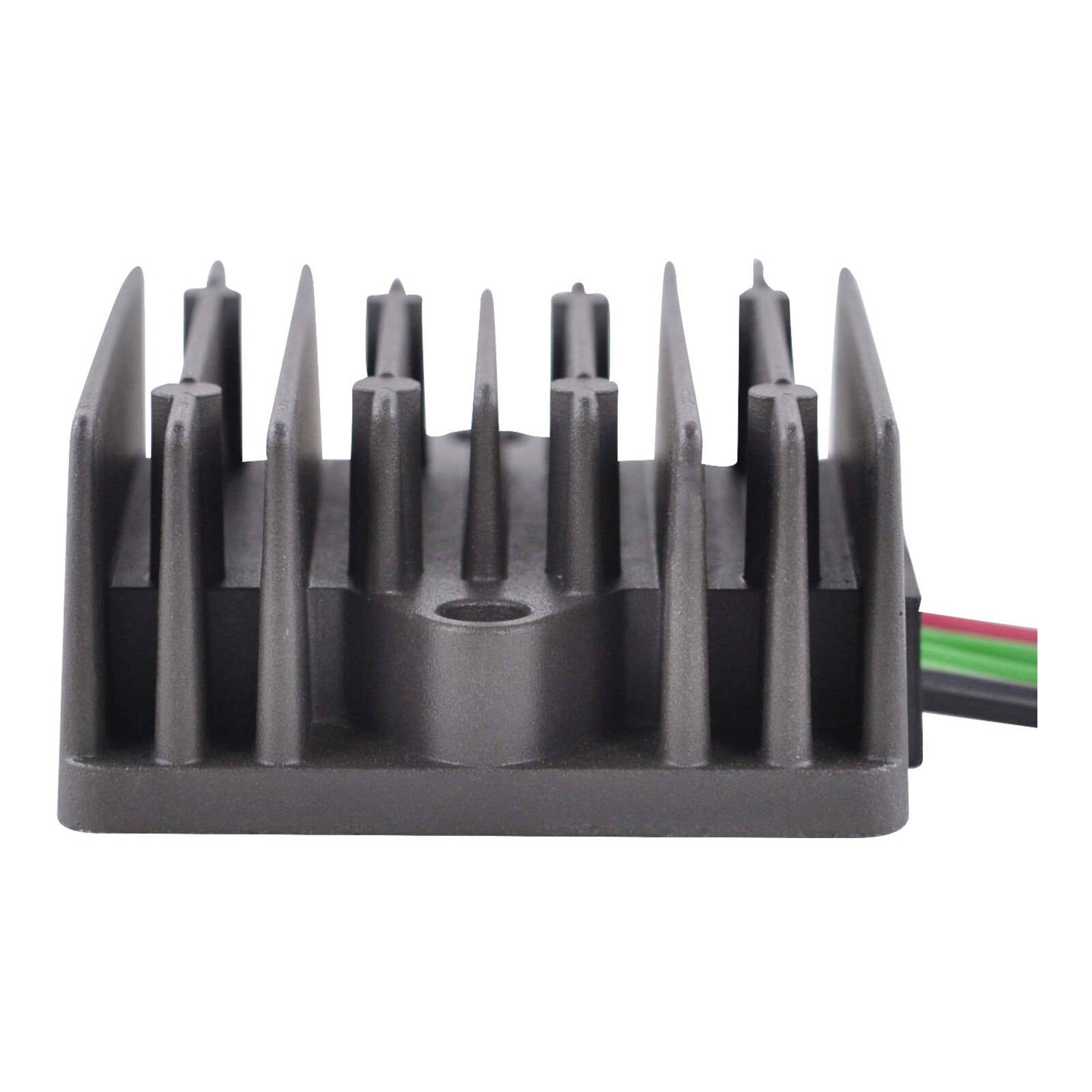

- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment

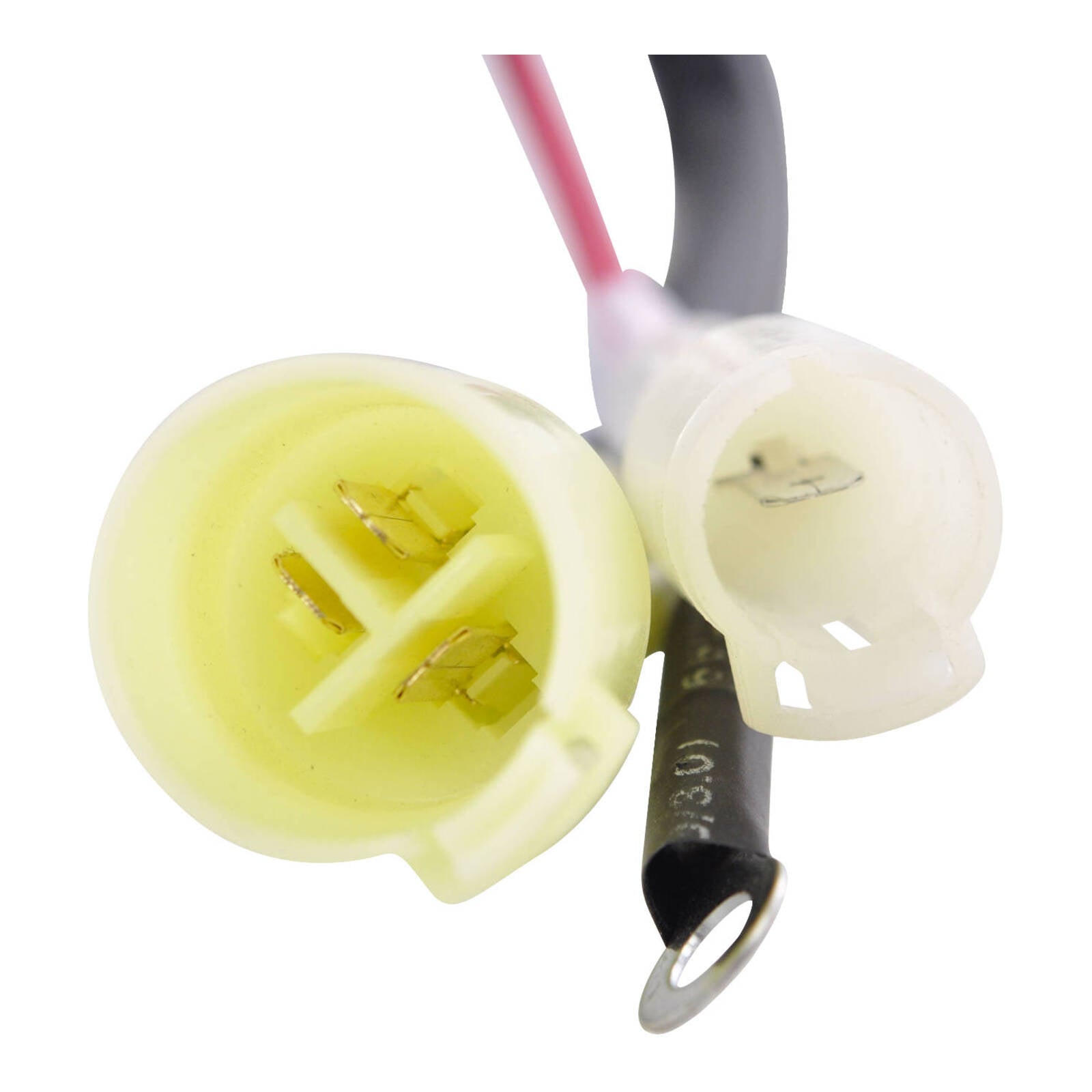

- Connector included
- All products shipped are tested
Dimensions:
Width: 79.5 mm
Length: 72 mm
Height: 35 mm
Wires length: 190 mm (black) 130 mm (green) 75 mm (red)
Fixation holes center to center: 67 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°
