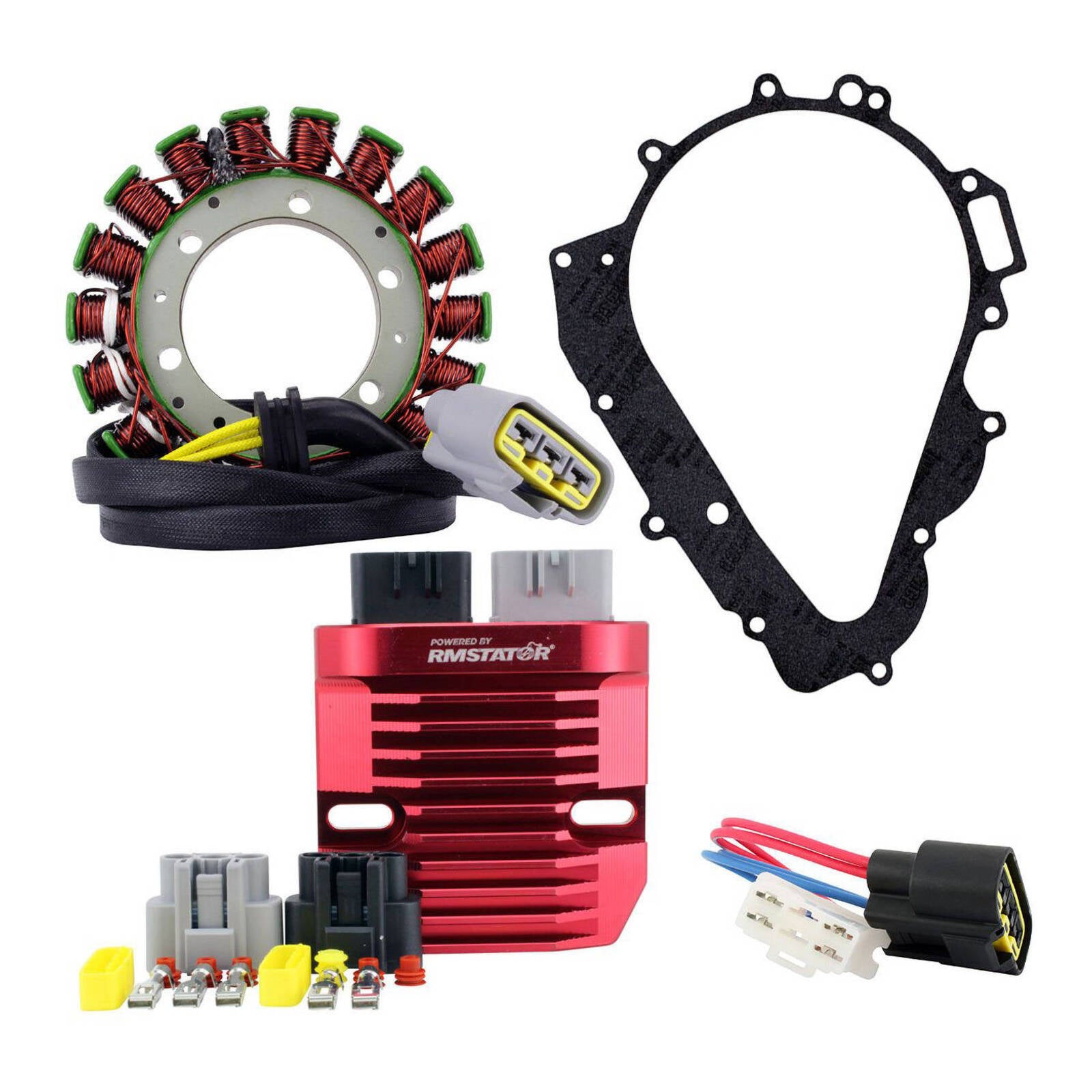

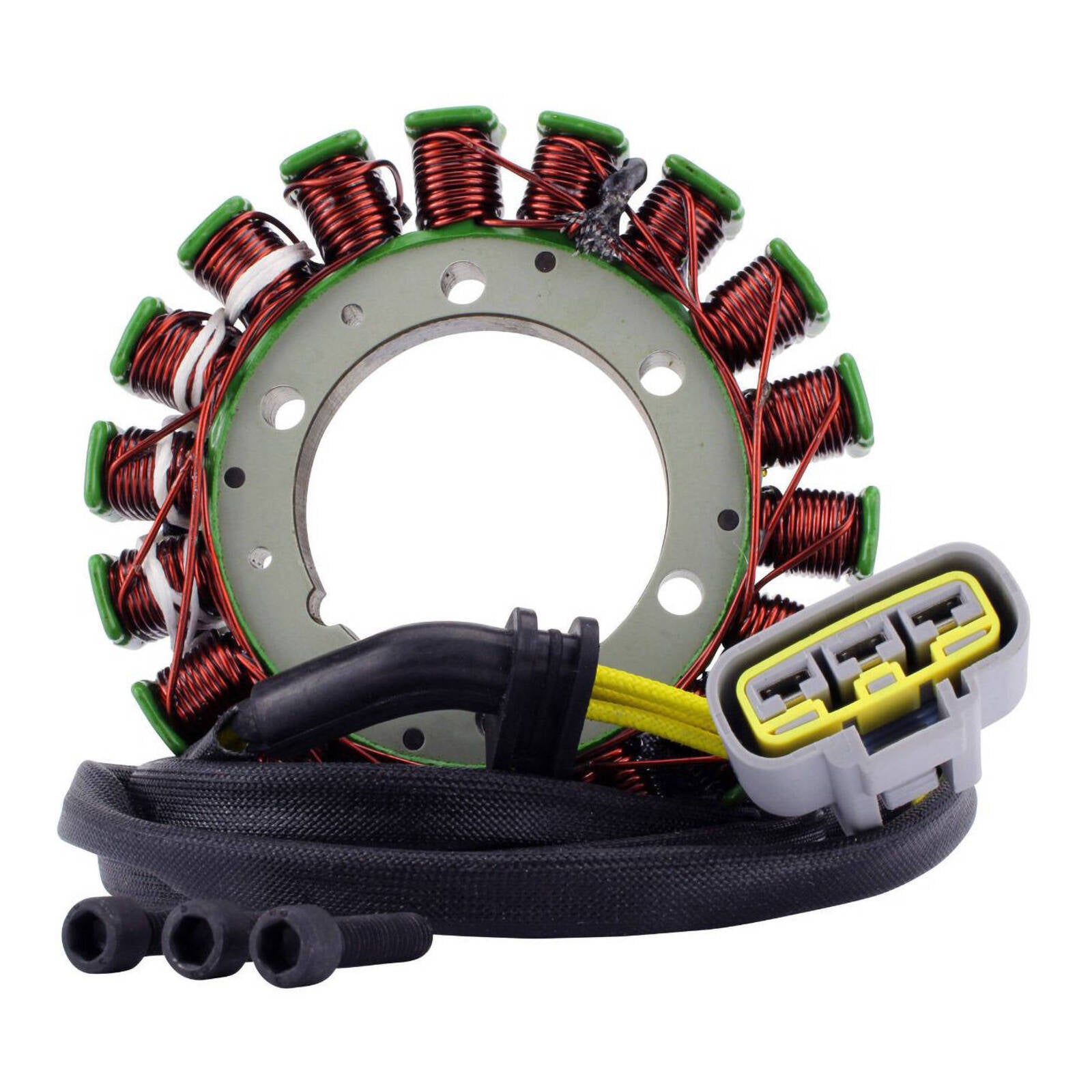

Brand new aftermarket stator. + Red Machined aluminium MOSFET Regulator Kit

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Harness and Gasket Included
• Includes 3x M6-1.00 X 30 Allen socket head
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate and compare the item to the original part.

The 2004-2009 Aprilia RSV and Tuono models are excellent motorcycles, but all suffered from a very unreliable charging system. The issue was an extremely strong magnetic flywheel that caused excess heat in the stator windings and common repeat failures. A replacement stator of the original design was simply not a reliable solution. The high output from the stator also caused regular voltage regulator failures, making for a very poor charging system.

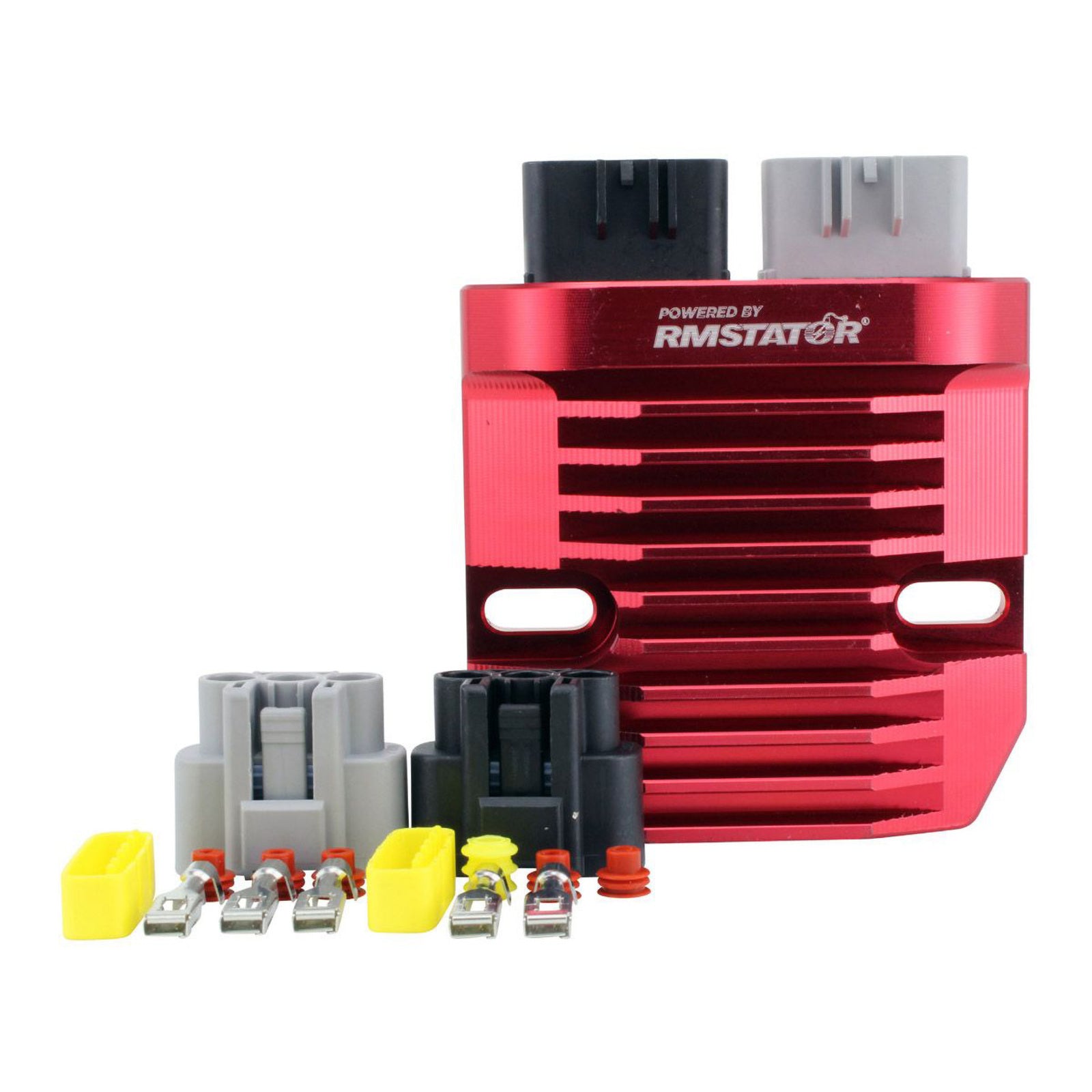

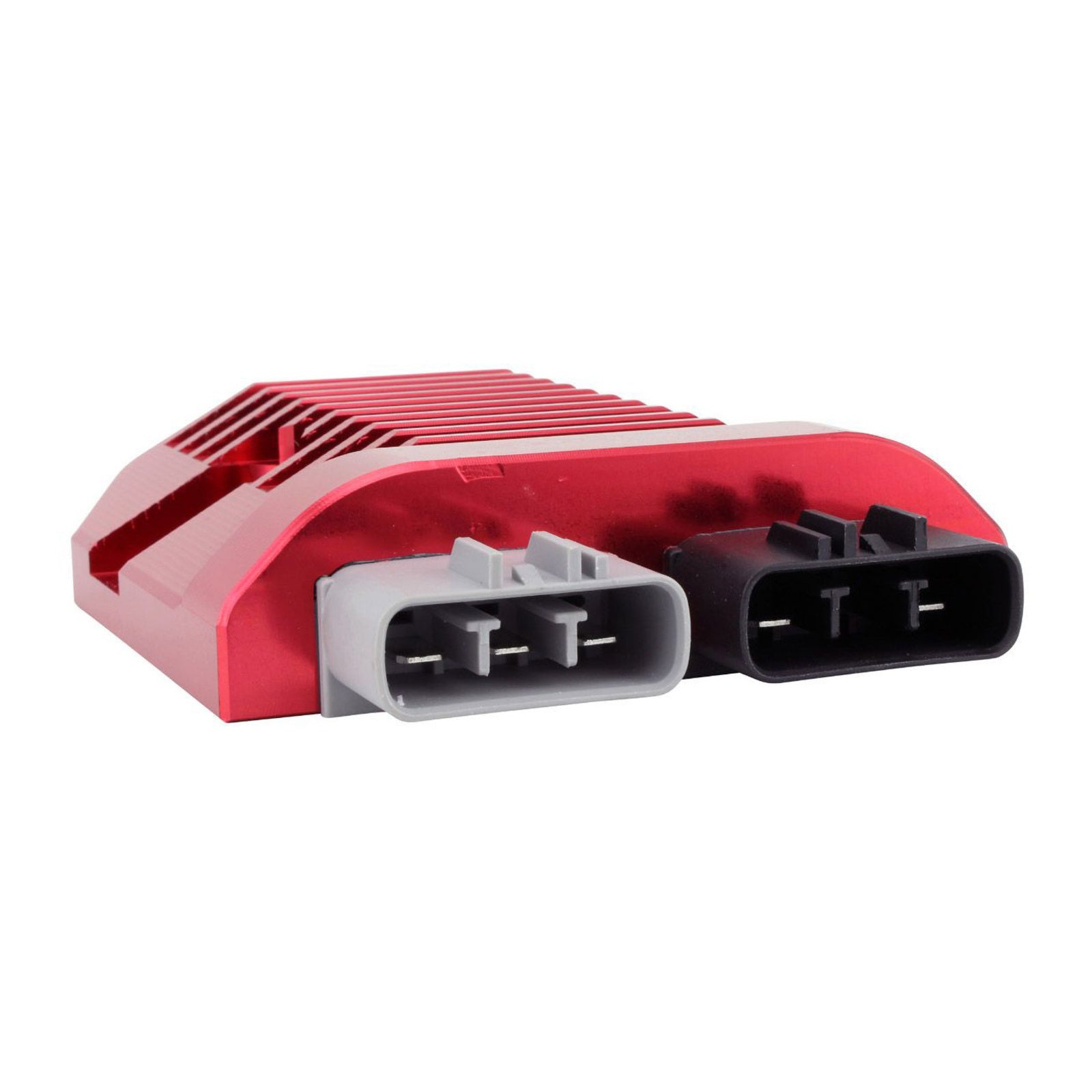

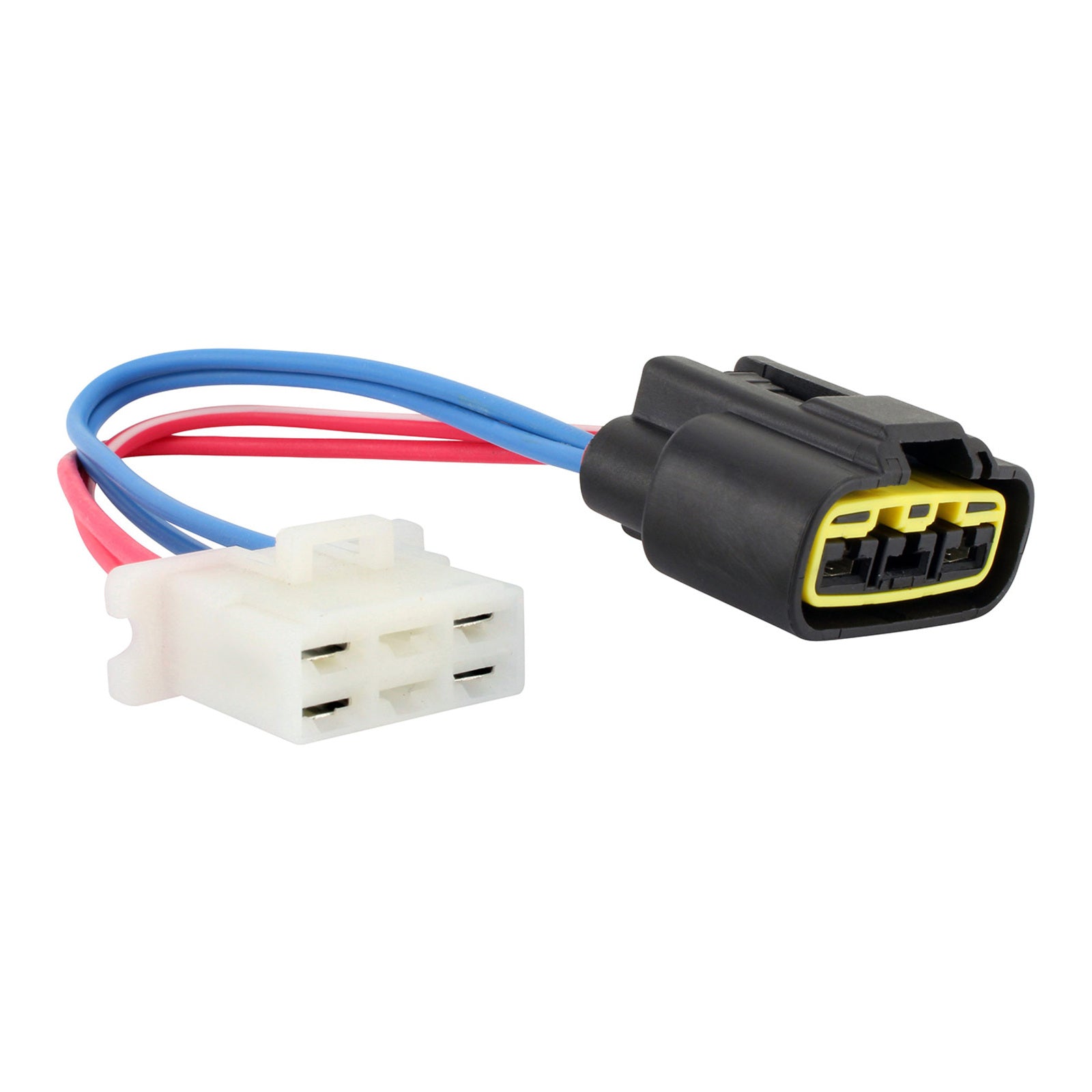

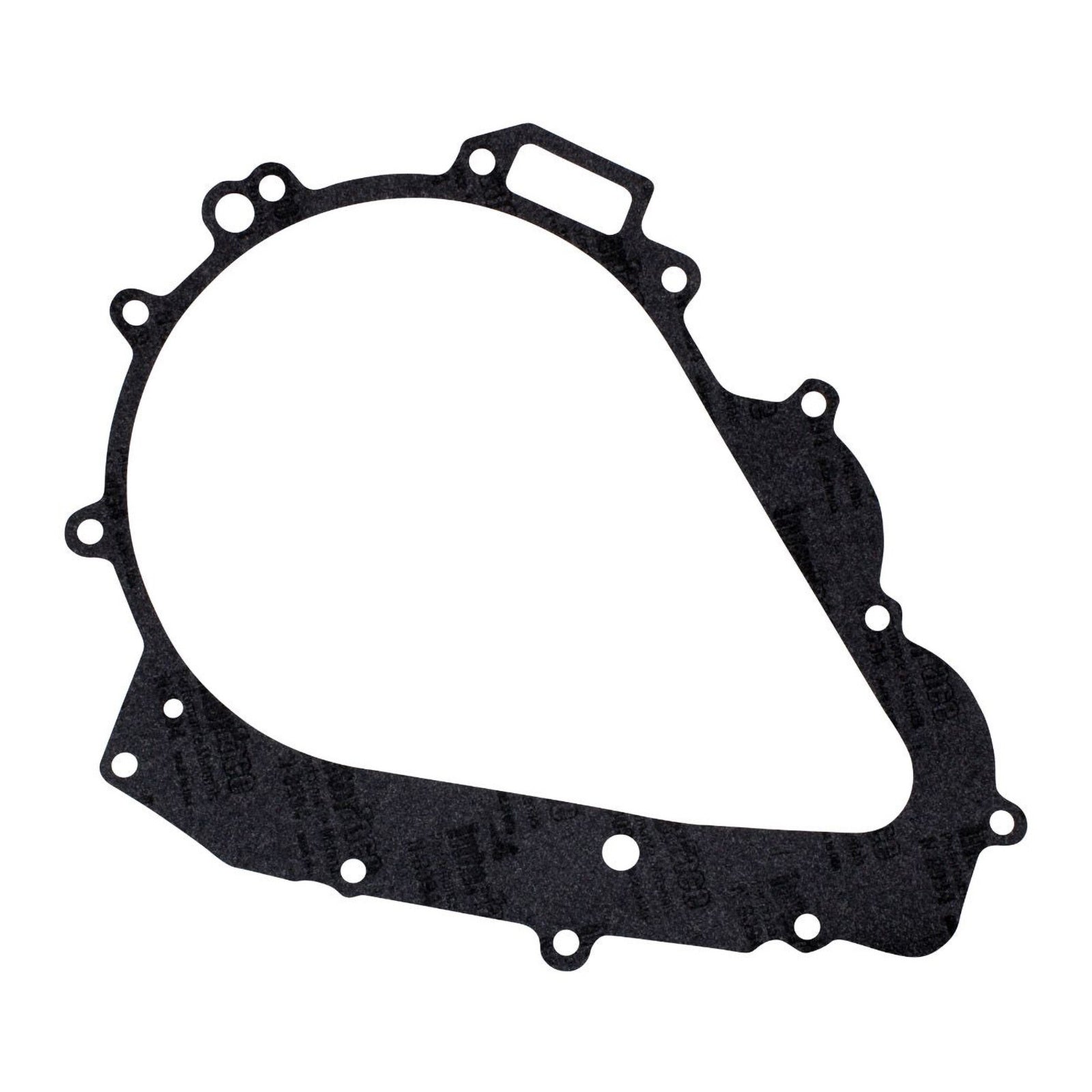

To solve this problem, RMSTATOR has engineered a permanent solution kit to address all parts of the charging system. A thinner stator core is used that generates and retains less heat in use, and promotes cooling due to increased oil coverage from the extra space inside the flywheel. Paired with a CNC billet aluminium machined series type voltage regulator, the charging system is now bulletproof. For a complete and easy installation, we include shorter stator mounting bolts, a plug-and-play adapter harness for the new voltage regulator, and a stator cover gasket.

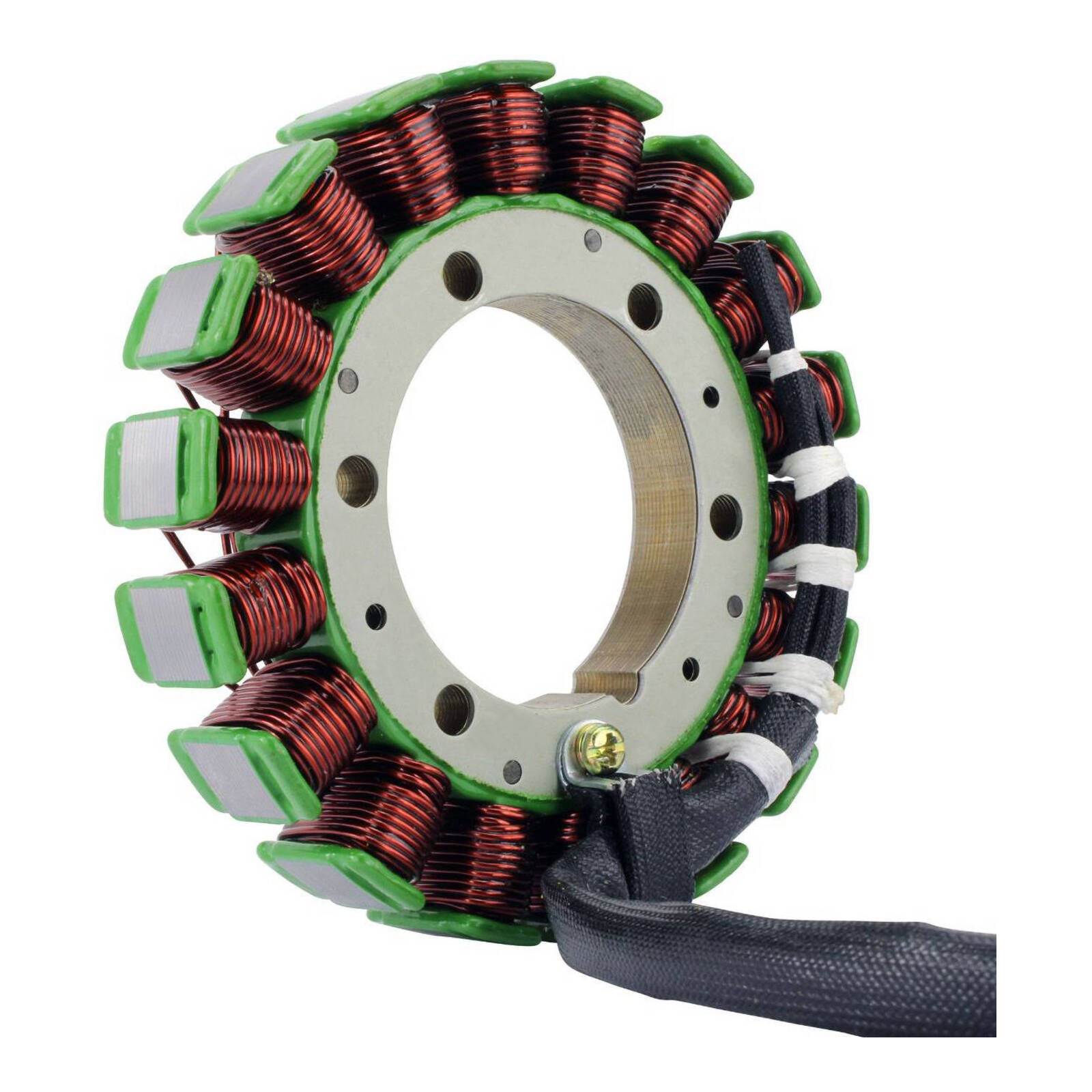

Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Tow pick up pulsar coil included

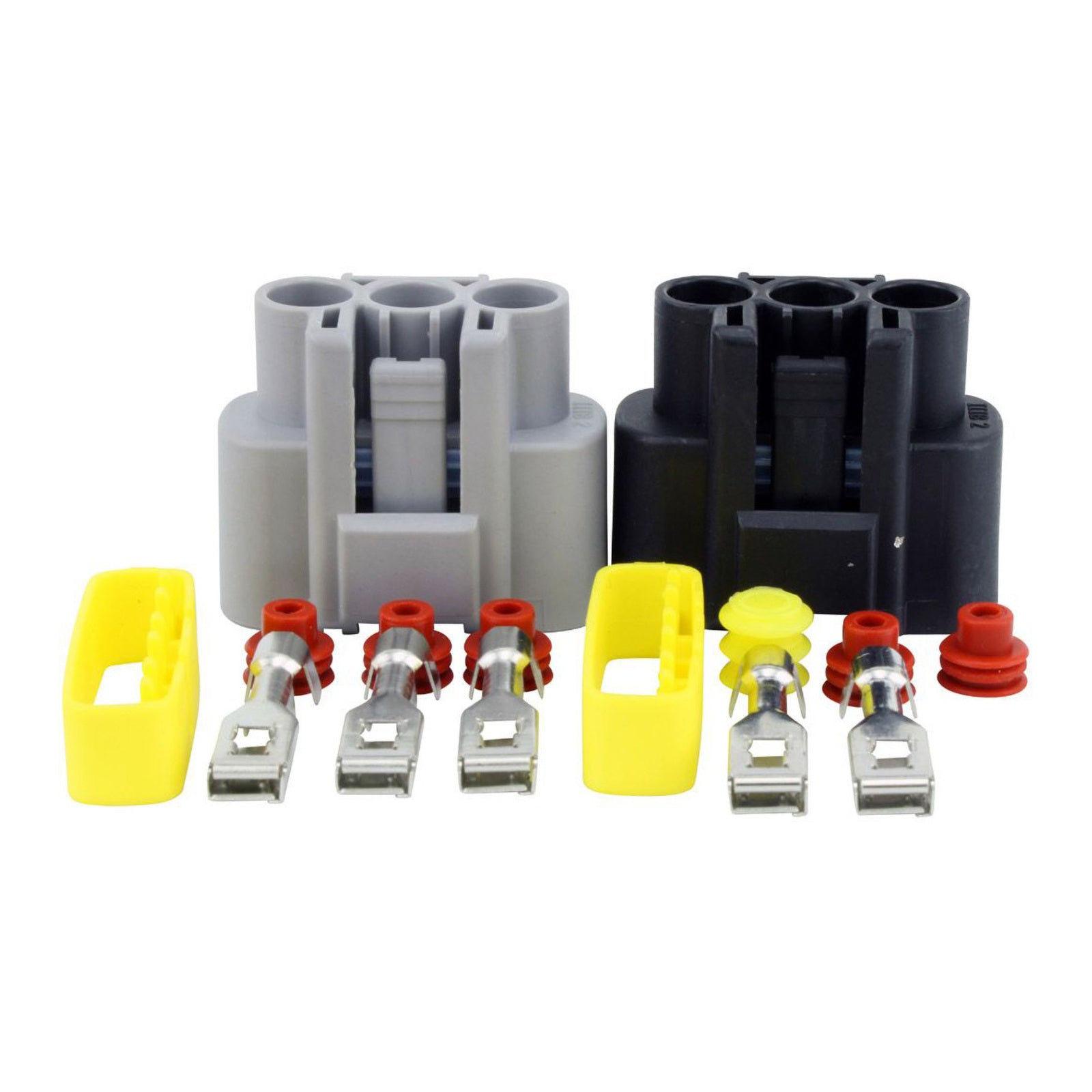

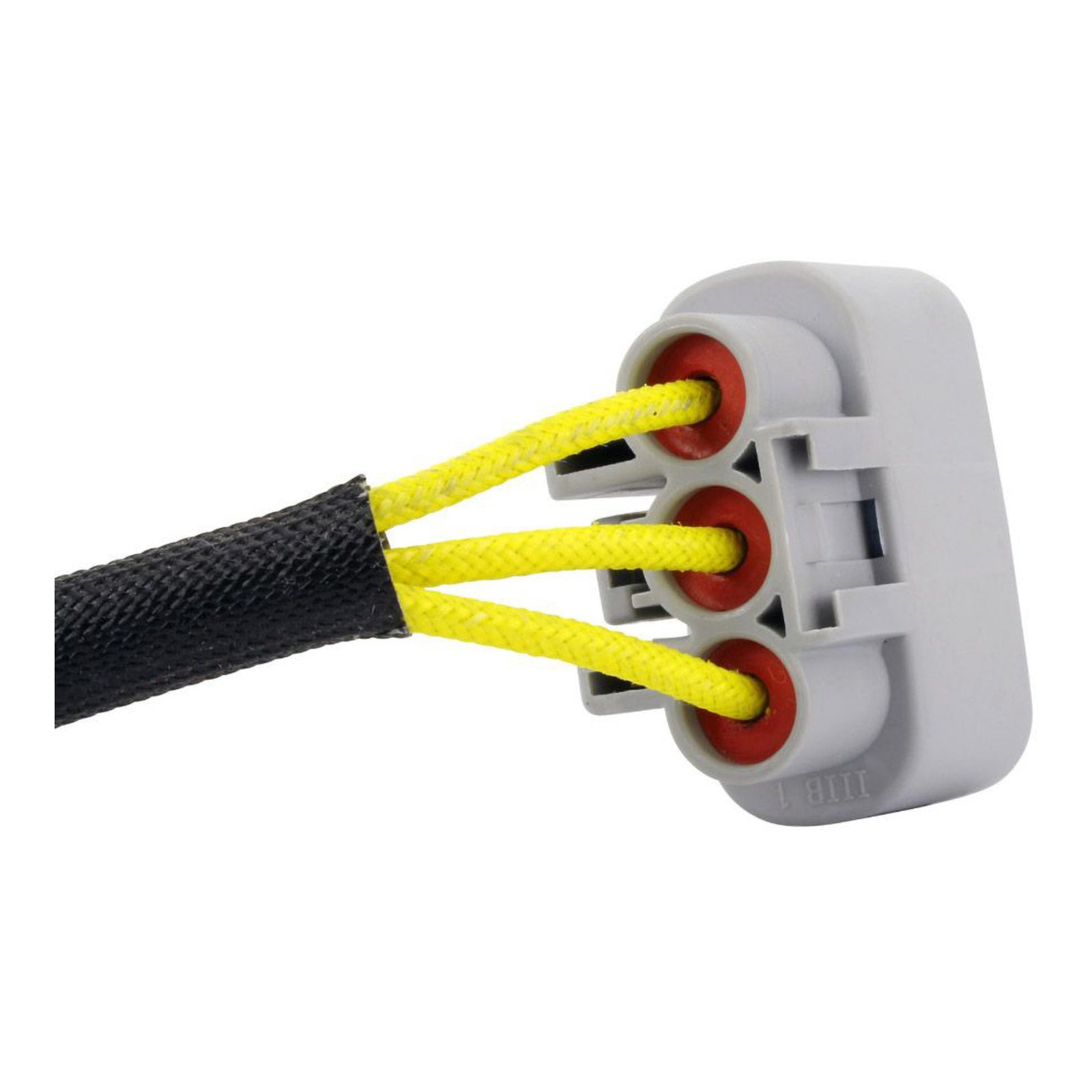

• Connectors included

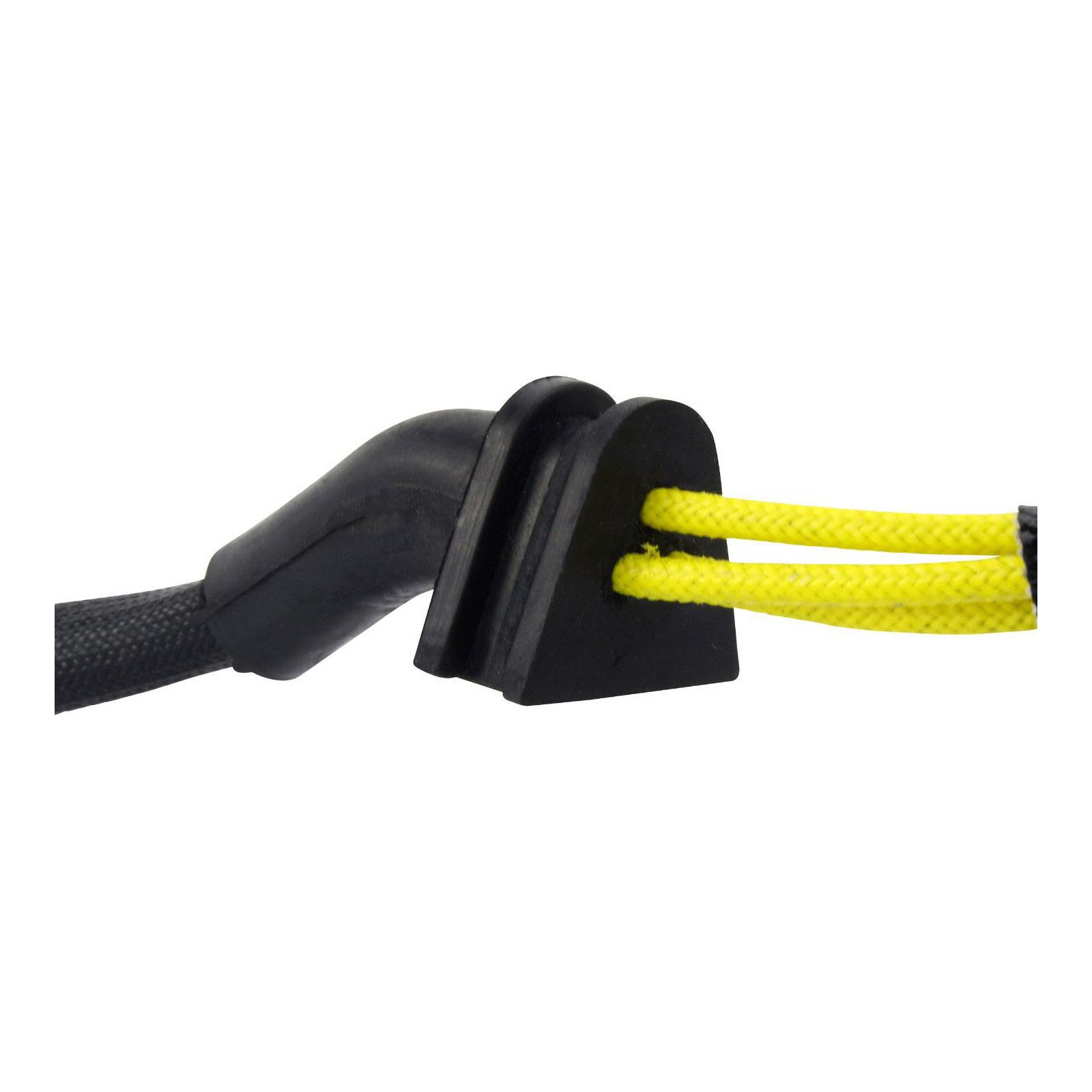

• Rubber grommet included

BENEFITS OF SERIES VOLTAGE REGULATORS

• SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.

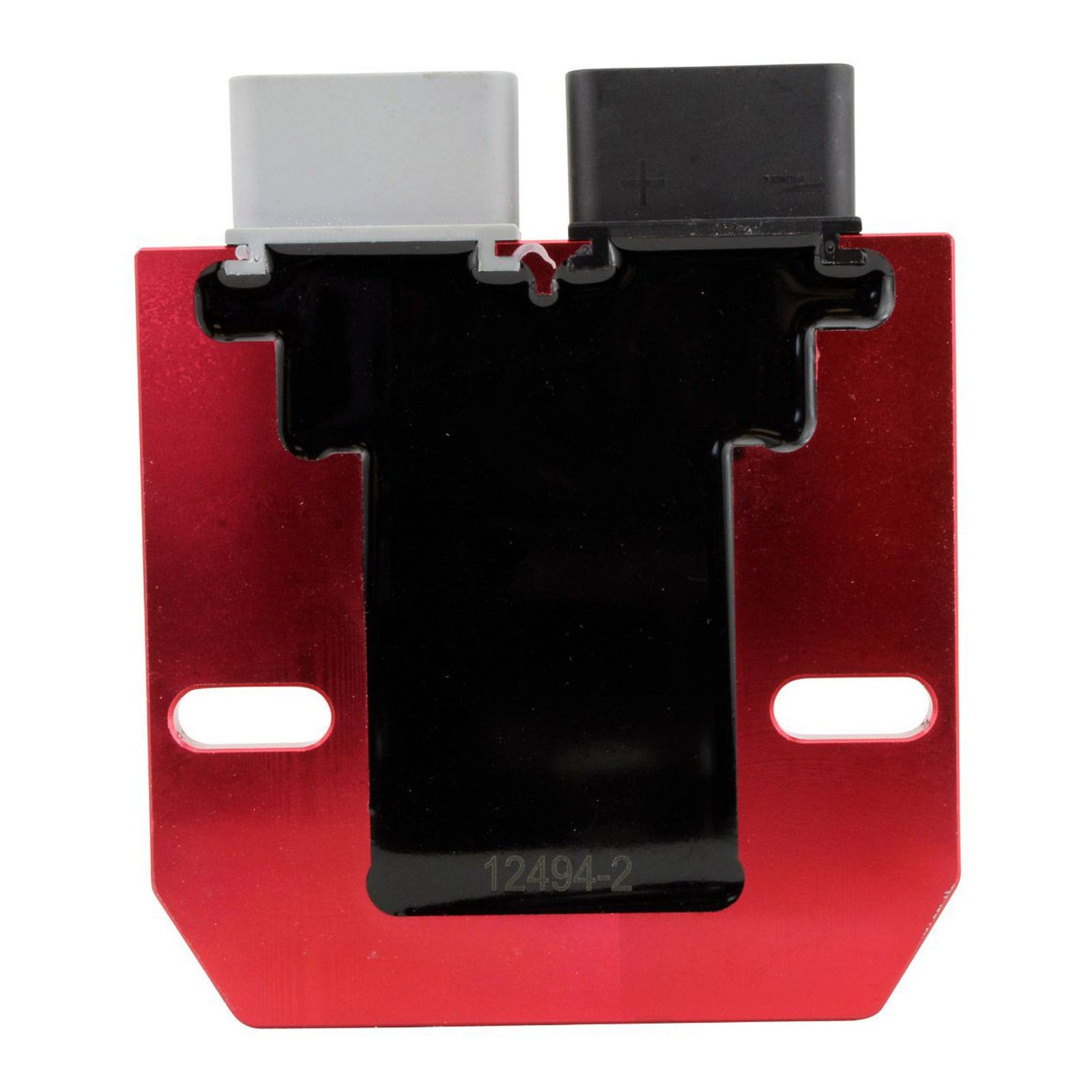

• Moreover, the regulator has a new machined billet aluminium casing which dissipates heat 33% better than a standard moulded casing.
• Power only flows through the electrical components when the battery is charging.
• Allows the stator to have lower current flowing when not used, extending its lifetime.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.

Before installing the new Stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors
• The stator might have a different wire colour code than the original part.
• All the wires are installed in the correct order; please do not change any of the wiring configurations.
• This stator is designed as a direct plug-in replacement and should be used as such.
• When bolting stator in, always use locking compound.
• If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".

Before installing the new Voltage Regulator Rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Install the regulator in the OEM mounting location. It must be installed with connectors facing up. It is a tight fit, but will slid behind the radiator coolant tube and thermostat housing. This is the only way for the vehicle adapter harness to be installed correctly.

Warning:

• Risk of electric shock. Disconnect the battery before servicing.
• Ensure proper installation by a qualified technician to avoid malfunction.


Stator Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 115 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 1180 mm

Other specifications :

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator 3p: Yellow to Yellow = 0.8 ohms +-20%
• Pickup: Green to Blue = 500 ohms +-20%

Regulator Dimensions:

• Width: 103 mm
• Length: 103 mm
• Height: 28 mm
• Distance between fixation holes centre to centre: 80 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
