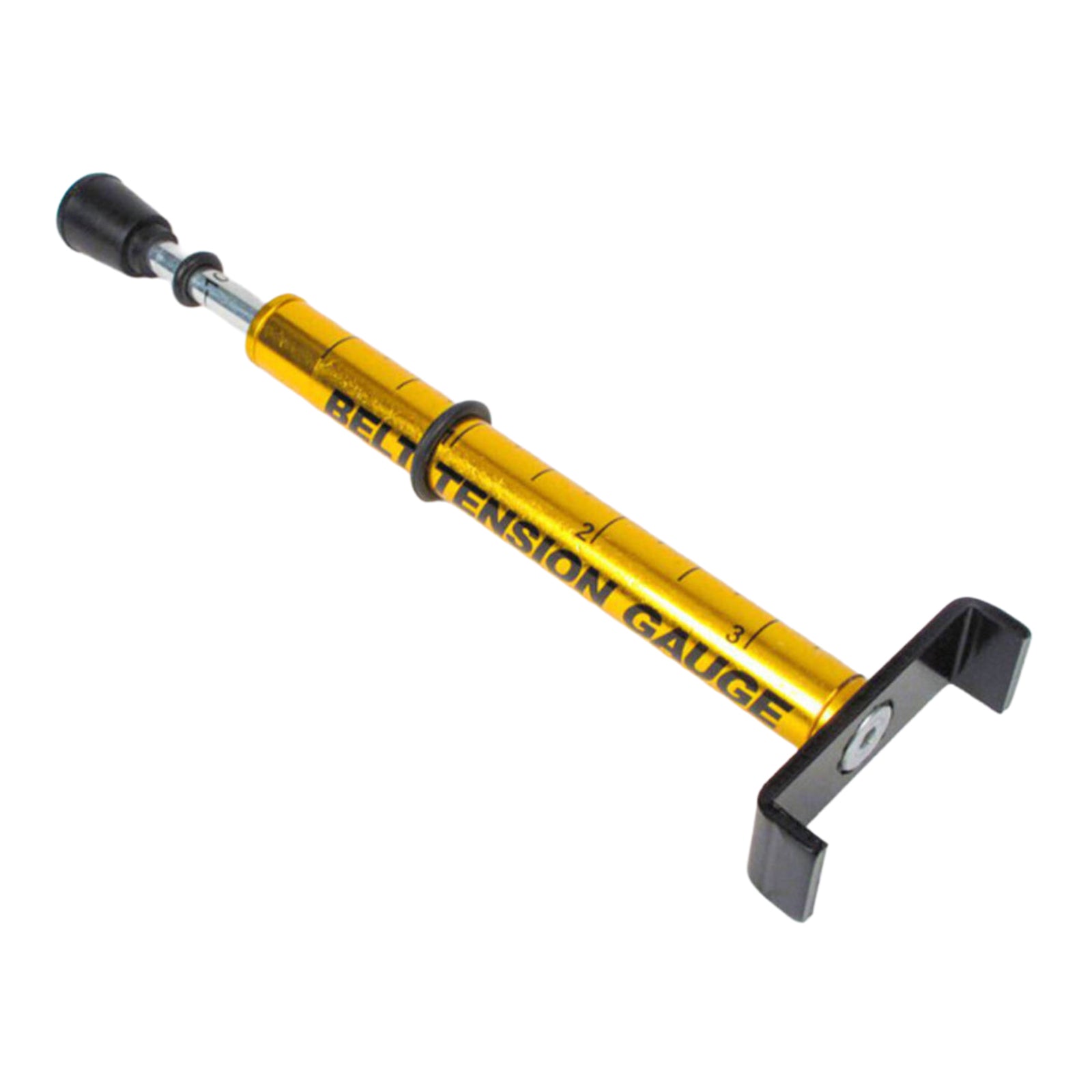

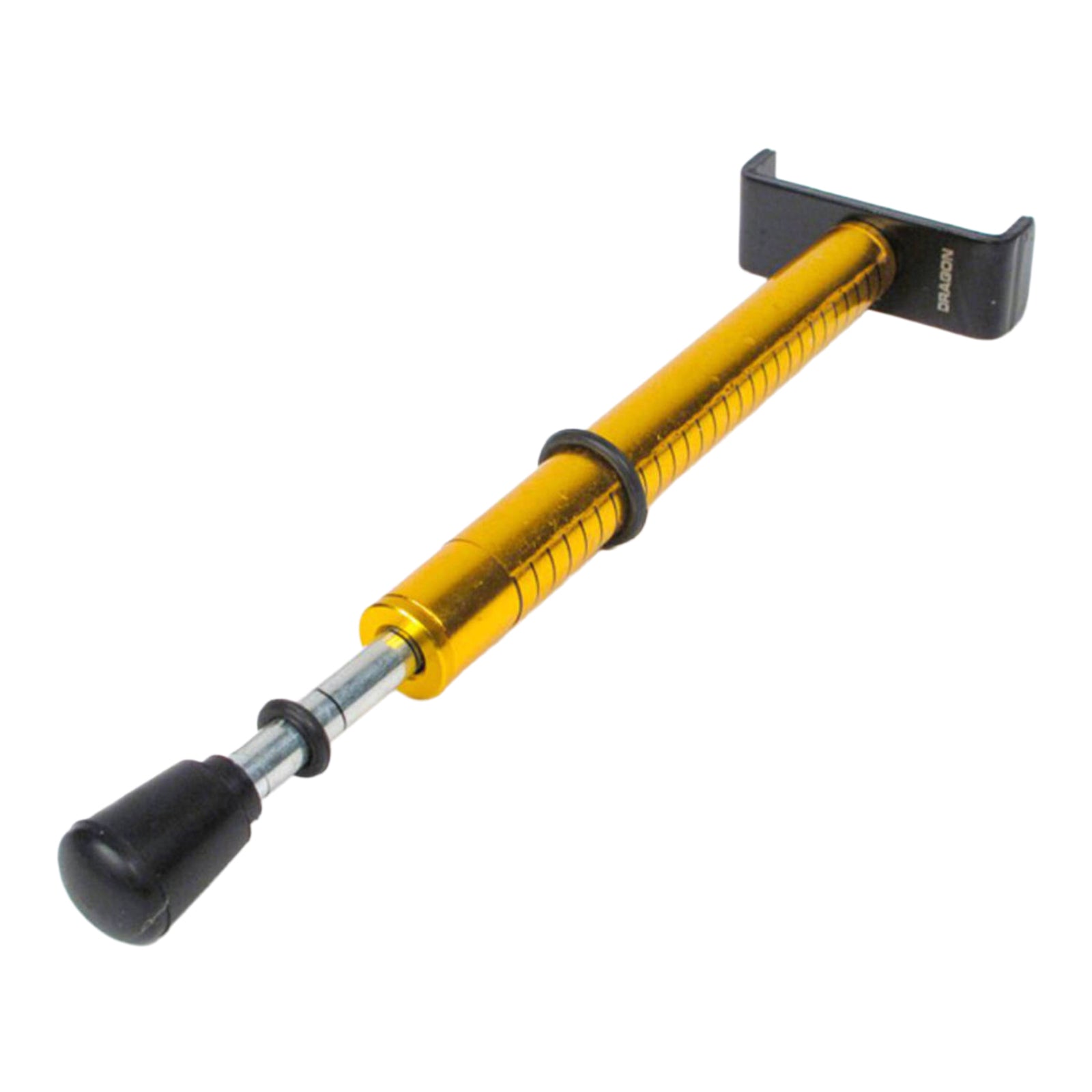

The WMP Belt Tension Gauge provides a simple way to check and adjust belt tension on motorcycles equipped with a secondary drive belt. Correct belt tension helps prevent premature wear and ensures the drive system operates correctly. Ideal for use following belt replacement, adjustment or wheel servicing.

Features:

• Easy to use and read.
• Allows accurate belt tension adjustment.
• Suitable for secondary drive belts with a 10lb specification.
• 1 to 3.5 measurement scale.
• Ideal for use after belt replacement, adjustment or wheel servicing.

Directions for Use:

1. Position the small O-ring over the 10lb mark.
2. Position the U-shaped belt cradle against the bottom of the belt at a 90-degree angle and locate the large O-ring to a reference point. Record the reading.
3. Push upward on the rubber bumper until the small O-ring touches the bottom of the tool body.
4. Re-align the large O-ring to the reference point. The difference in the reading is the belt deflection. Refer to the vehicle service manual for the correct specification.
